Carpe Iter Caretta Navigation Kit

Complete 7″ Navigation Kit for Adventure & Touring, including serious off-roading

It’s not a tablet! It is purpose-built satellite navigation (sat-nav) device for motorcycles powered by Android with Play Store! The most advanced solution of its kind available!

Included:

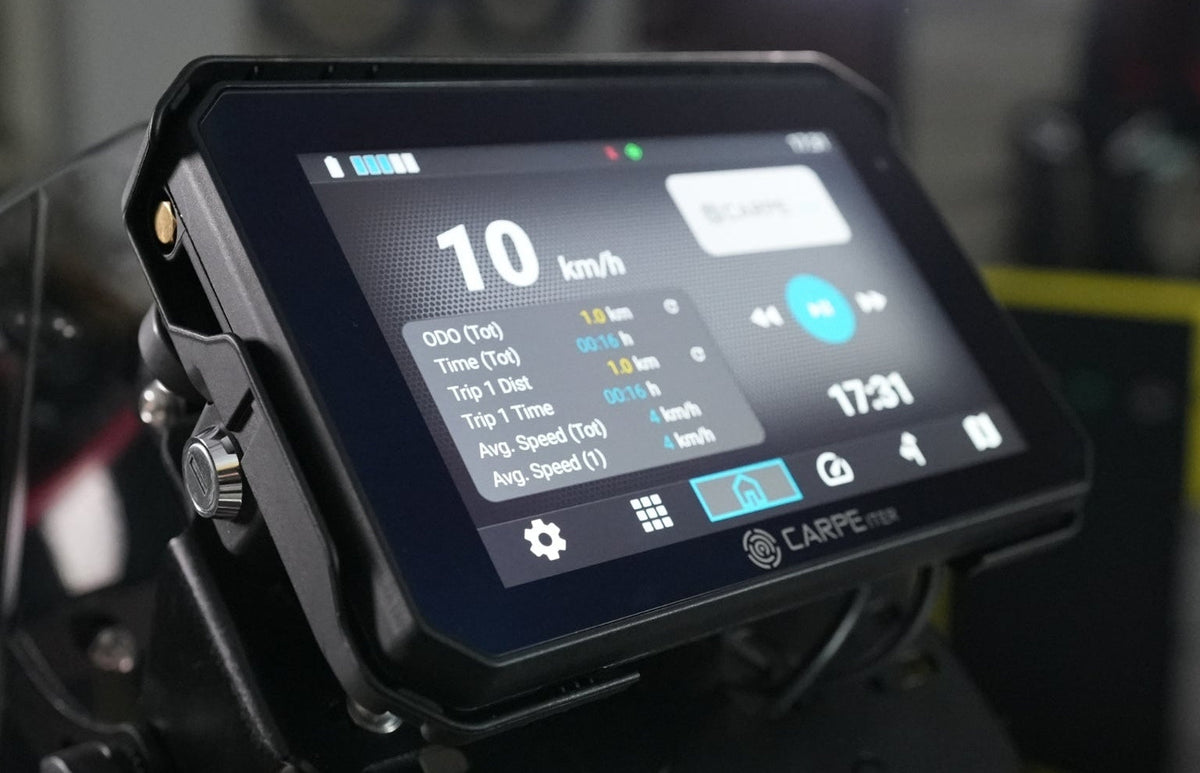

• Caretta smart navigation device

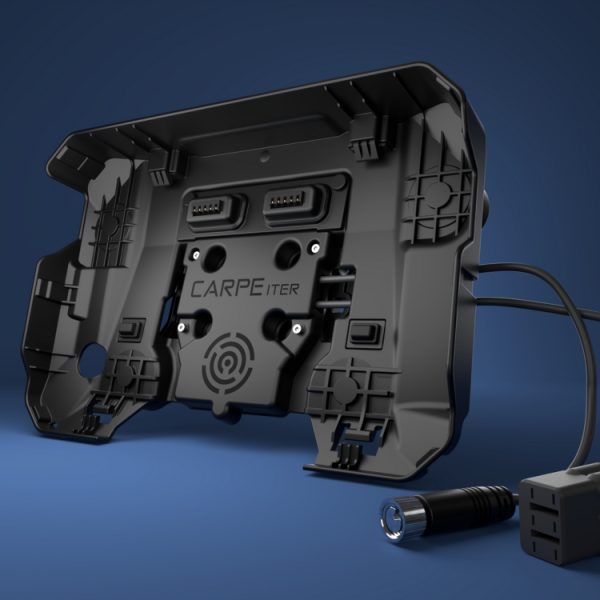

• Dedicated cradle for charging and data connection to the bike

• AMPS mounting base for standard 12mm GPS bracket (supports both landscape and portrait orientation)

• Universal power cable with 6mm battery loops and fuse box

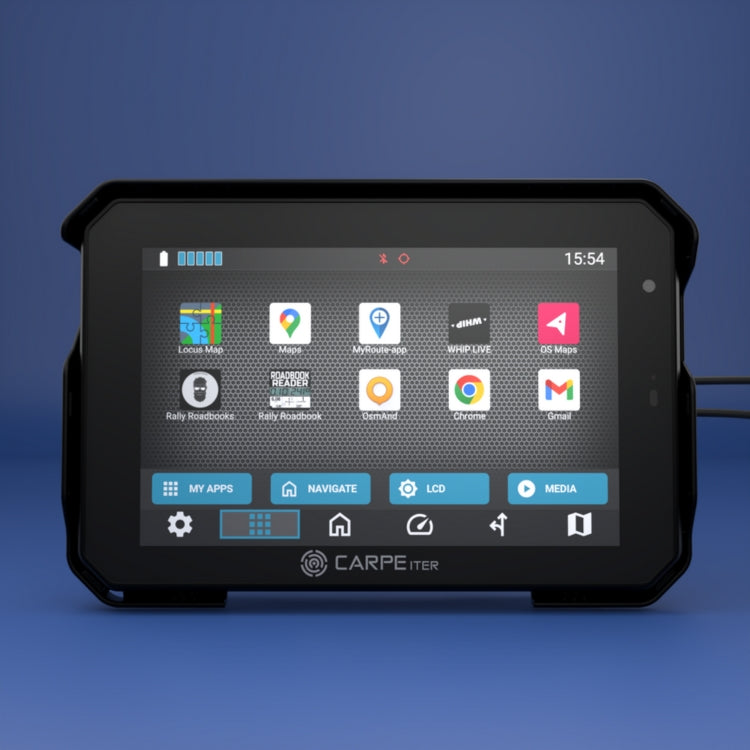

Caretta is a completely new breed of navigation device. It combines the ruggedness of hardware purpose-built for motorcycles, quads, and side-by-sides with the versatility of Android.

Unlike traditional sat-navs, Caretta offers full compatibility with the Google Play Store. You can use any Android app and especially any GPS navigation app just as you would on a normal Android tablet or your mobile phone.

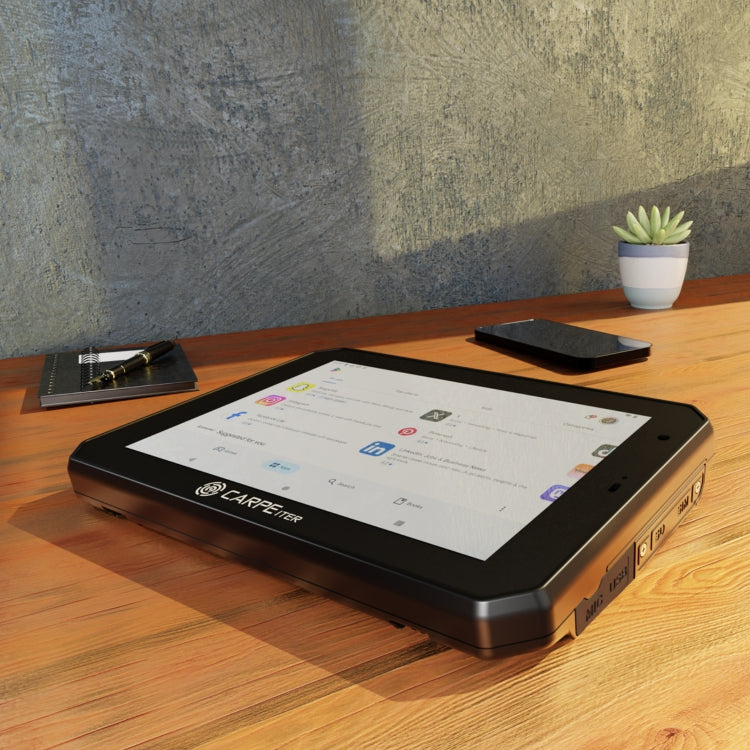

Done riding? Take it off your bike and do you social, emails, browse the Web, listen to Spotify, watch Netflix, watch YouTube, play a game …

Every feature below sets Caretta apart. It is a one-of-a-kind device offering unbeatable price-to-value.

Why is a purpose-built device better than a generic industrial tablet? It is the difference between a tool adapted for the job and a tool born for it. Industrial tablets are engineered for warehouses and construction sites, not handlebars. Even with modifications, a tablet is limited by a design intended for a different environment. Caretta is built for the ride!

Design specific Features

Ultra-Durable Construction:
Chassis and cradle parts are molded from highly resilient, glass-fiber filled nylon for maximum durability and toughness.

7-inch Ultra-Bright Display:
1920×1200 resolution with 2,200 nits brightness for perfect visibility in direct sunlight.

Pre-installed screen protector:
Hardened glass with anti-reflective and anti-smudge coating. Available also as spare part. Easy replacement (peel-of the old one and stick new one).

All-Weather Touchscreen:
Tuned to distinguish a gloved finger from raindrops.

Smart Power Management:
Designed for direct 12V input with built-in voltage stabilization to protect against electrical surges.

Extreme Heat Performance:
Operates from -20°C to 75°C. Features a battery-bypass mode that powers the device directly from the bike, protecting the Li-ion battery in extreme heat.

Precise GNSS/GPS:
Dedicated dual-band chip (L1+L5) with 10Hz refresh rate and sub-1m accuracy. Supports 5 constellations (GPS, Galileo, Glonass, Beidou, QZSS) and SBAS.

• internal large dual-band antenna

• connector for optional external active dual-band antenna

Bike Integration

OBD Connectivity:
Direct cable connection to your bike’s OBD II compliant port. No Bluetooth dongle needed. Please check below for supported models (adaptor cable for each bike brand / model is needed).

BMW Wonderwheel:
Plug-and-play control via the BMW Multicontroller (GS models supported; others in testing. Adaptor cable needed: BMW Adaptor Cable with Split Power output, BMW Adaptor Cable Simple 50cm or BMW Adaptor Cable Simple 100cm).

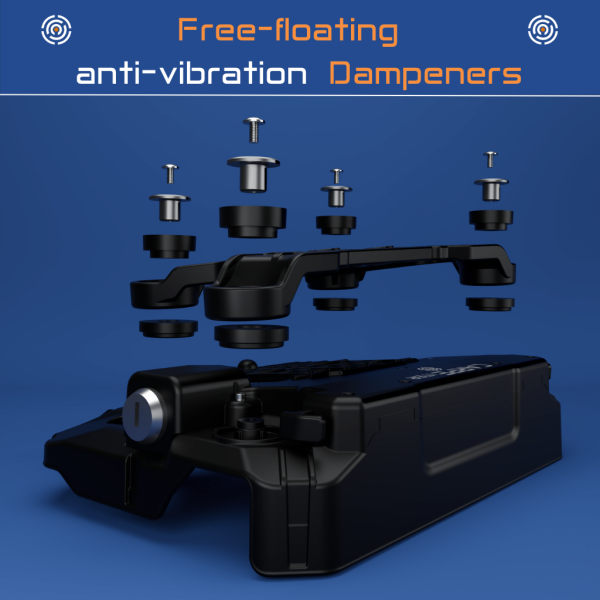

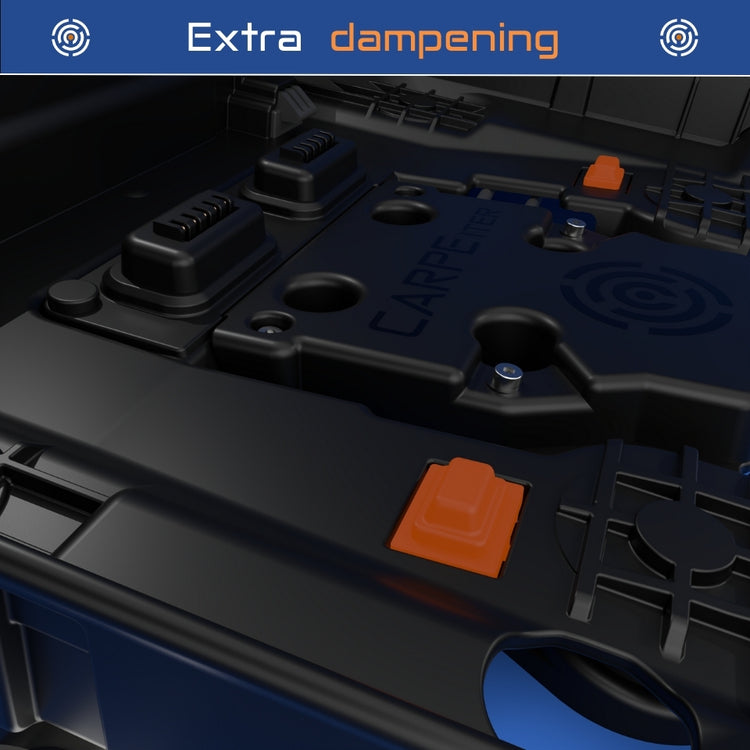

Vibration-Damped Cradle:

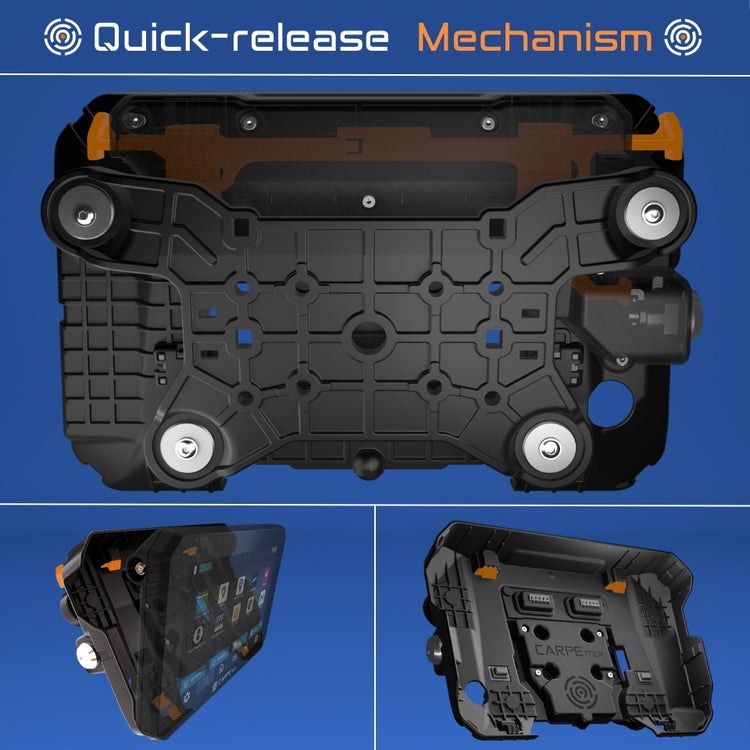

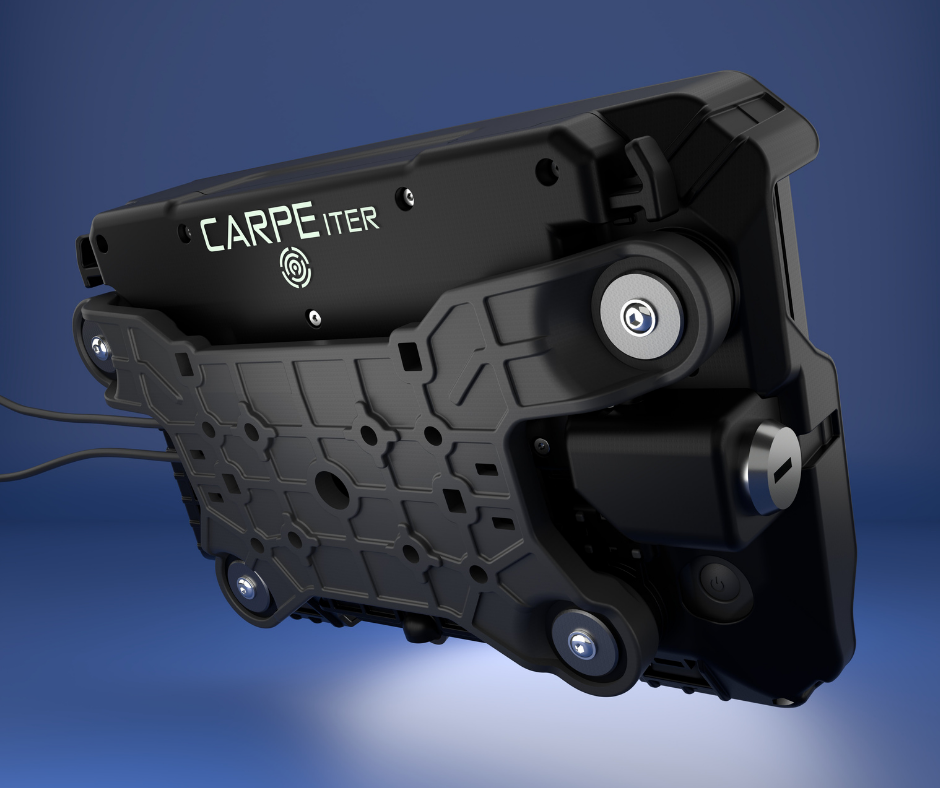

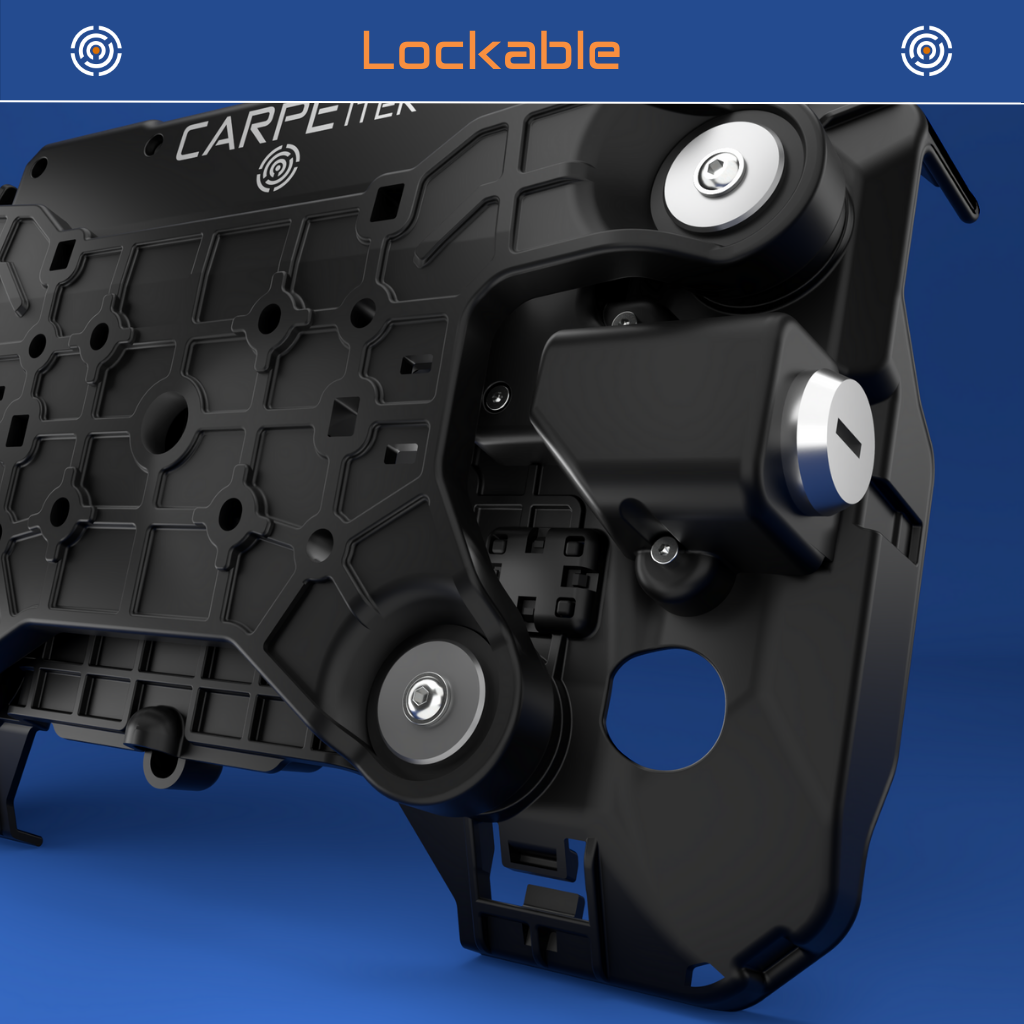

Quick-release locking cradle with a “free-float” dampening system to isolate the device from engine vibrations.

Superior Waterproofing:

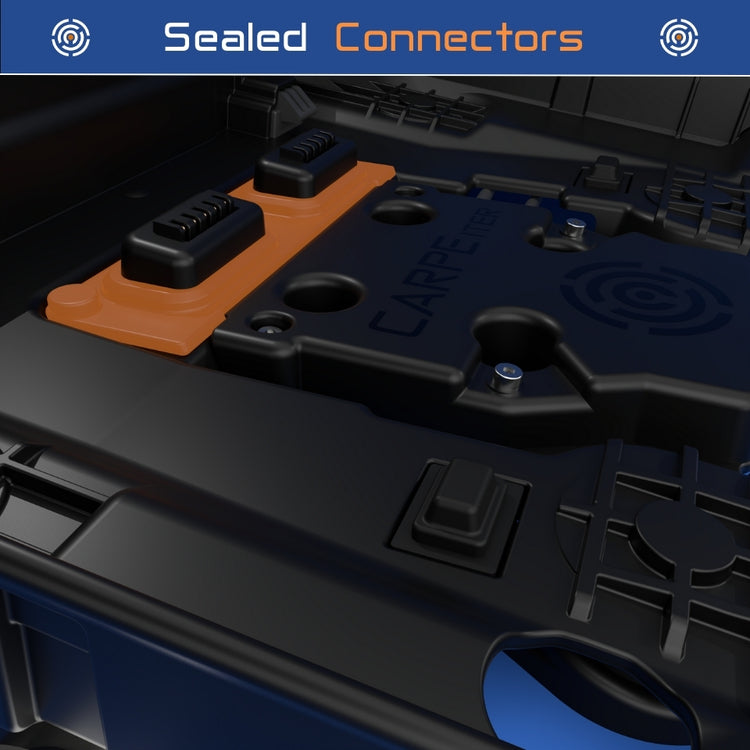

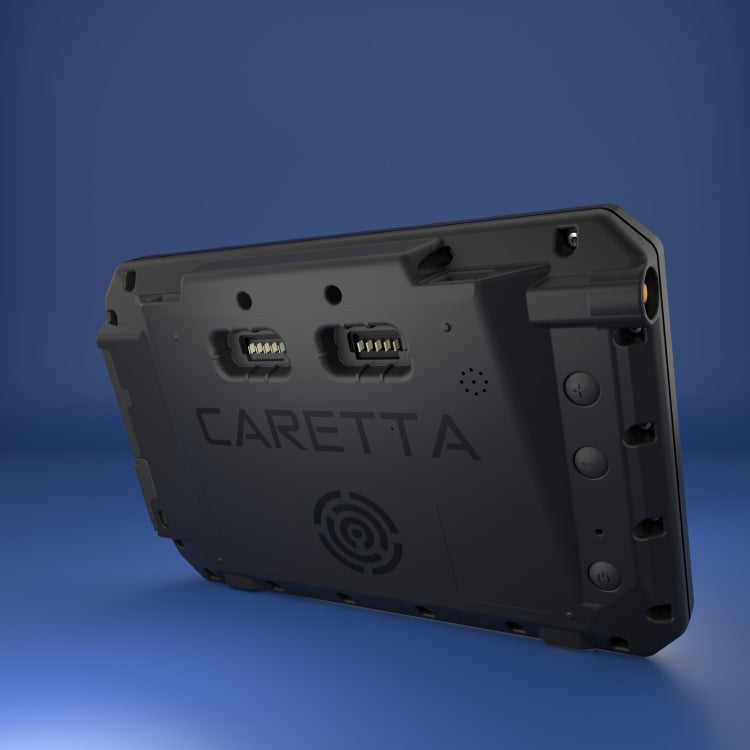

Fully sealed ports, discrete and waterproof connectors for power and data. The device exceeds IP69 standards, capable of withstanding hours of riding in heavy rain at highway speeds.

Status LED:
Basic operational statuses at a glance; user configurable with an option to disable.

Software:
Free offline world-wide maps and other motorcycle specific functionality in pre-installed NGH.

General Features

Future-Proof OS:
Ships with Android 14. Updates to Android 16 and 18 are guaranteed.

Performance:
8-core Qualcomm Kryo CPU with Adreno 610 GPU.

Memory:
8GB RAM / 128GB Internal Storage (expandable via MicroSD up to 512GB).

Connectivity:

• LTE (EMEA region) for voice (VoLTE) and data, 4G. Includes bands B20 and B28 for Nordic countries.

• Dual SIM (eSIM + nano SIM).

• Dual-band Wi-Fi (2.4/5GHz, 802.11 a/b/g/n/ac).

• Bluetooth 5.1 (Classic & BLE).

Sensors:
Ambient light, accelerometer, gravimeter (hardware compass), gyro.

Ports:

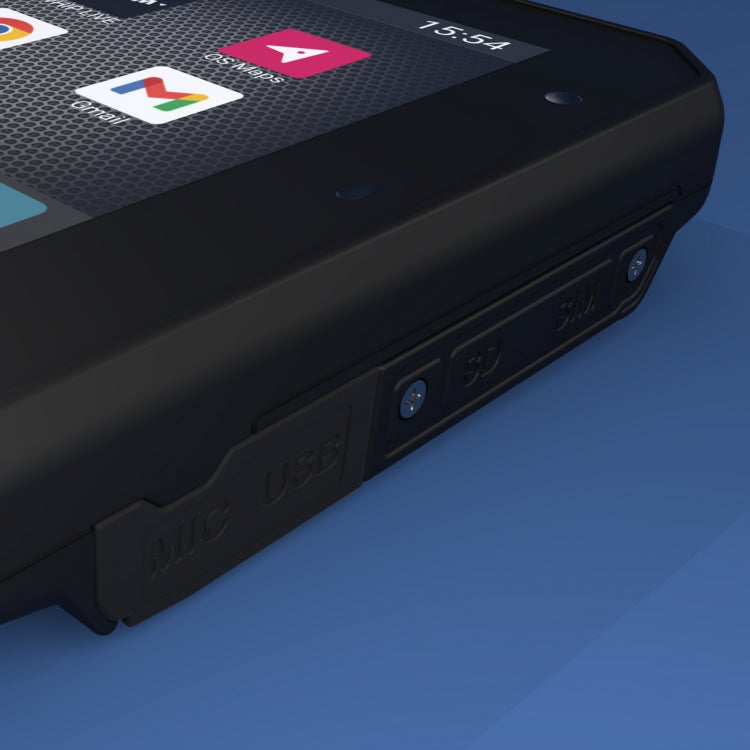

USB-C (IP68 waterproof with integrated dust cover), USB 3.1 standard with OTG support.

Audio & Video:
Front-facing camera and IP68-rated waterproof microphone and speaker.

Power:
5200mAh battery. Safe to charge with any standard USB or QC (Quick Charge) wall adapter.

Mechanical Specs

Weight

• Caretta: 630g

• Cradle: 390g

Dimensions

• Caretta: (LxWxH): 194x129x22-33mm (triangular cross-section)

• Cradle: (LxWxH): 203x165x50-56mm (triangular cross-section)

LTE Compatibility

Caretta’s LTE section is designed for the EMEA region (Europe, Middle East, Africa). Although technical compatibility with some networks outside this region is possible, it is not guaranteed. In other than EMEA regions, Caretta should be considered WiFi only. National specifics outside EU may apply to GSM network connectivity beyond the technical compatibility – in case of doubt, check with your GSM operator before purchasing. Fully compatible within EU.

OBD Adaptor Cables

• KTM, Husqvarna: EURO 4 CAN bus models with 6 pin socket: OBD Cable for KTM/Husqvarna EURO 4 (white 6pin)

• Yamaha: EURO 4 CAN bus models with 4 pin socket: OBD cable for Yamaha EURO 4 (4pin)

• Universal EURO 5 adaptor cable: OBD cable for EURO 5 motorcycles
• OBD2 Bluetooth Adaptor Scan Tool

Please check also other accessories for Caretta.
