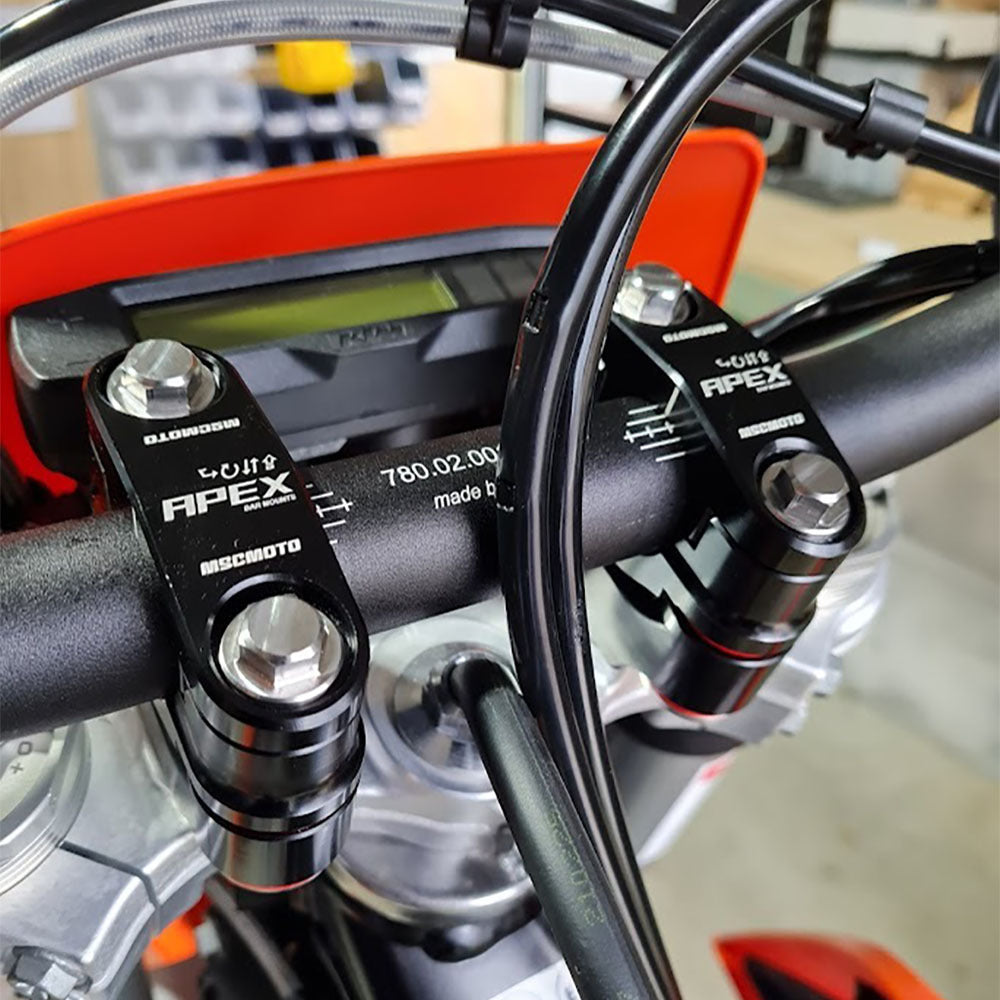

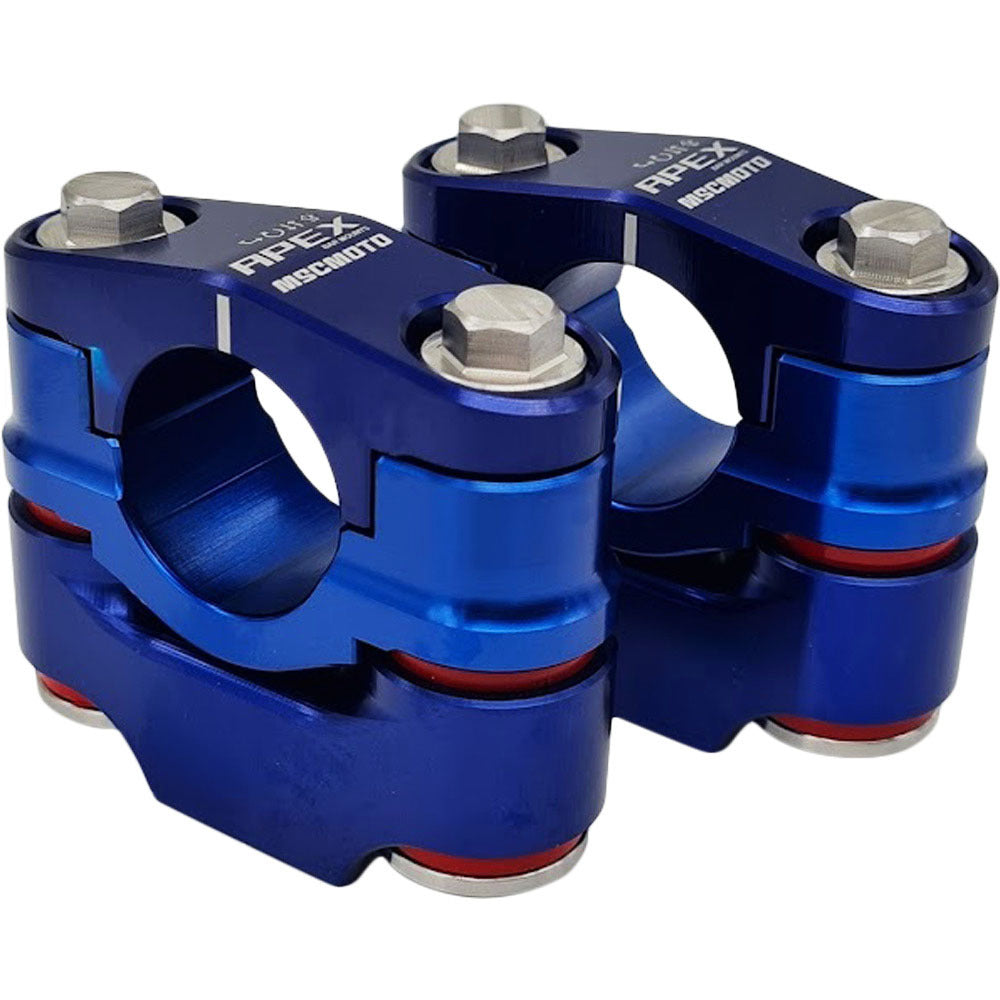

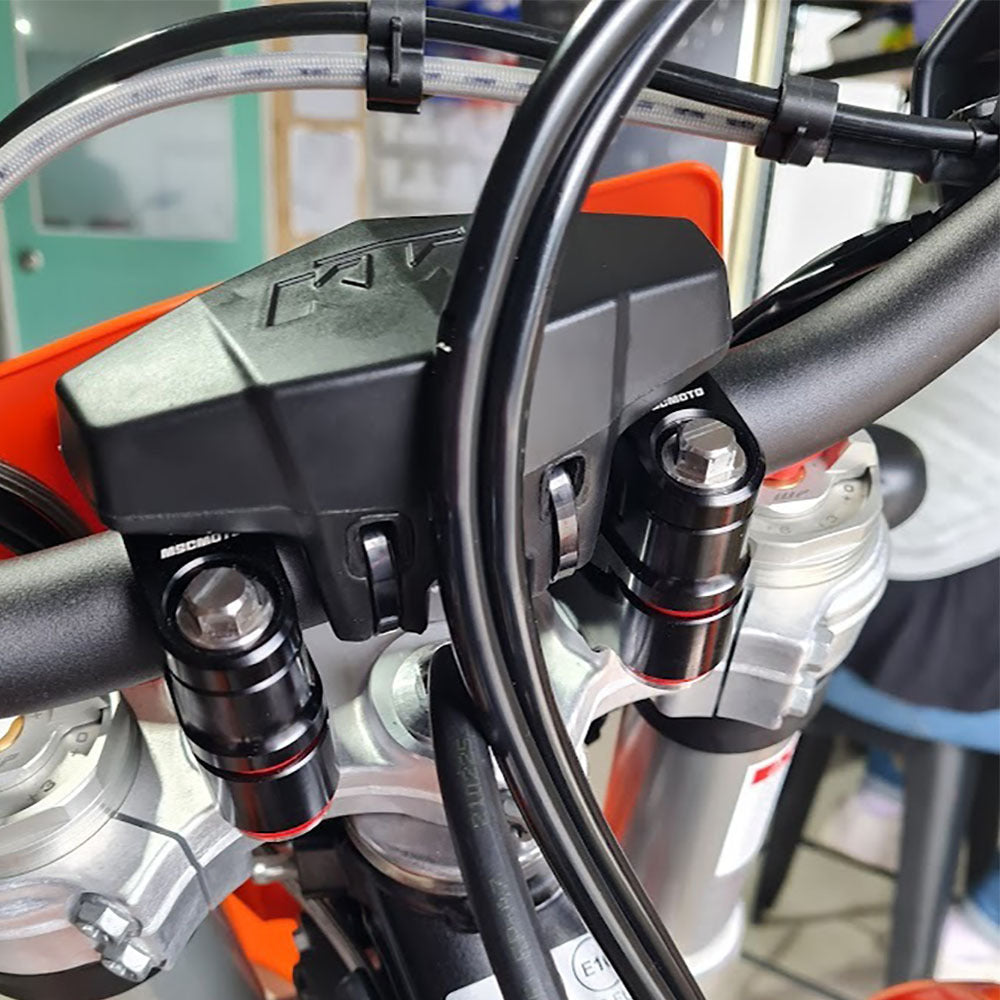

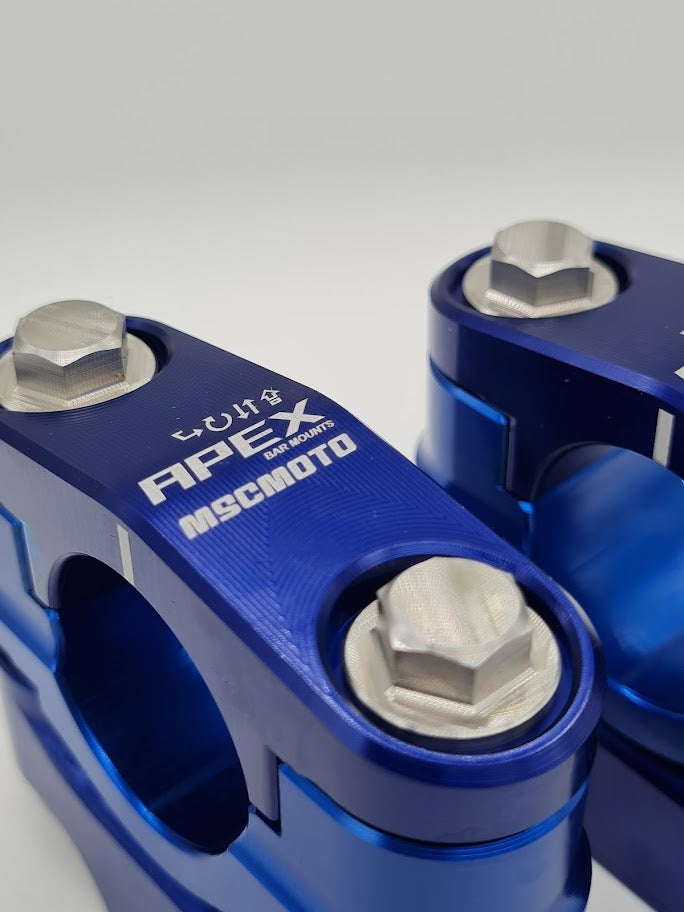

The APEX bar mount system is the perfect answer to reducing handlebar vibrations and damping out harsh impacts coming through your hands on your KTM, Husqvarna, Gas Gas, Sherco, Beta or Husaberg motorcycle.

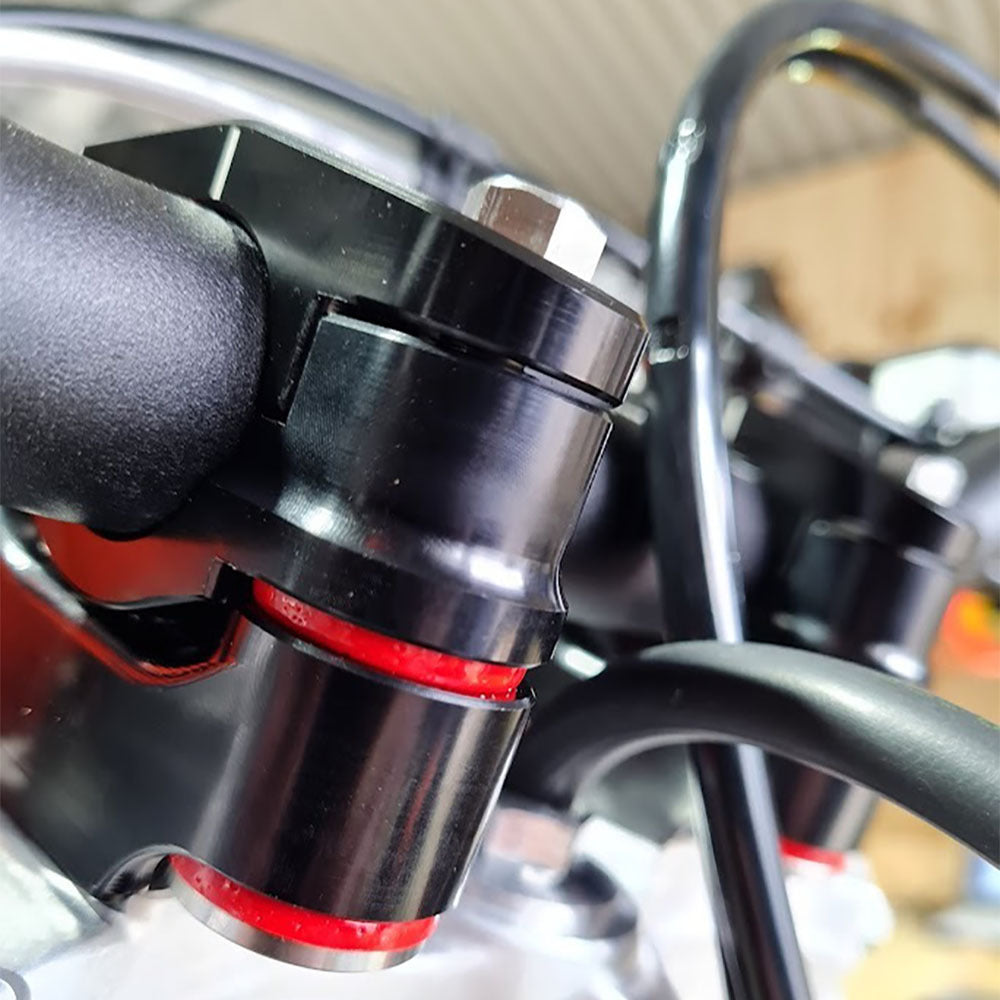

Our system is unique in the way it uses 4 FULLY damped points on both the upper and lower of the contact point. Other systems use only dampers on one side which is not fully damping the vibrations like a traditional "rubber mounted bar system on some OEM bikes. The APEX bar clamps use 8 damper cones made from cast polyurethane which offers superior reliability over natural rubber while keeping effective damping characteristics.
APEX is 100% made in Australia by MSCMOTO including casting the polyurethane damper cones and all CNC machining work.
Suitable for bikes with a rigid mounted handlebar as standard with a M10 fixing bolt.
Bar height is only increased by 5mm and less in some cases. The overall dimensions are more compact than other damped handlebar systems allowing for accessories and steering dampers/stabilisers to be mounted to the handlebars more easily.
KTM EXC - All models with rigid bar clamp mounting 2000 - 2022
KTM SX - All models with rigid bar clamp mounting 2000 - 2015
KTM adventure models - 390 - 790 - 890 - 1090 - 1190 - 1290
KTM 690 enduro 2008 to 2018
KTM road models - Super Duke 990 - 1290R and GT
Husqvarna Enduro models 2014 to 2022
Husqvarna MX models 2014 and 2015
Sherco - most models (please check your top triple clamp as some factory models with Xtrig clamps might not fit)
Gas Gas all models made in the latest generation made by KTM
Beta - all models using M10 mounting bolts.
Please Note: THIS PRODUCT WILL NOT FIT WITH KTM OR HUSQVARNA BIKES WITH THE ROUND RUBBER MOUNTS IN THE TRIPLE CLAMPS AS SEEN ON THE SX/TC MODELS.
Below is an example of what clamps the APEX bar Mount system will fit with. The important dimension is the M10 bolt thread and the 20mm wide bar riser interface.
If your bar clamps look like this then the APEX will fit your bike. (pictured are the OEM bar clamps from a KTM EXC)
