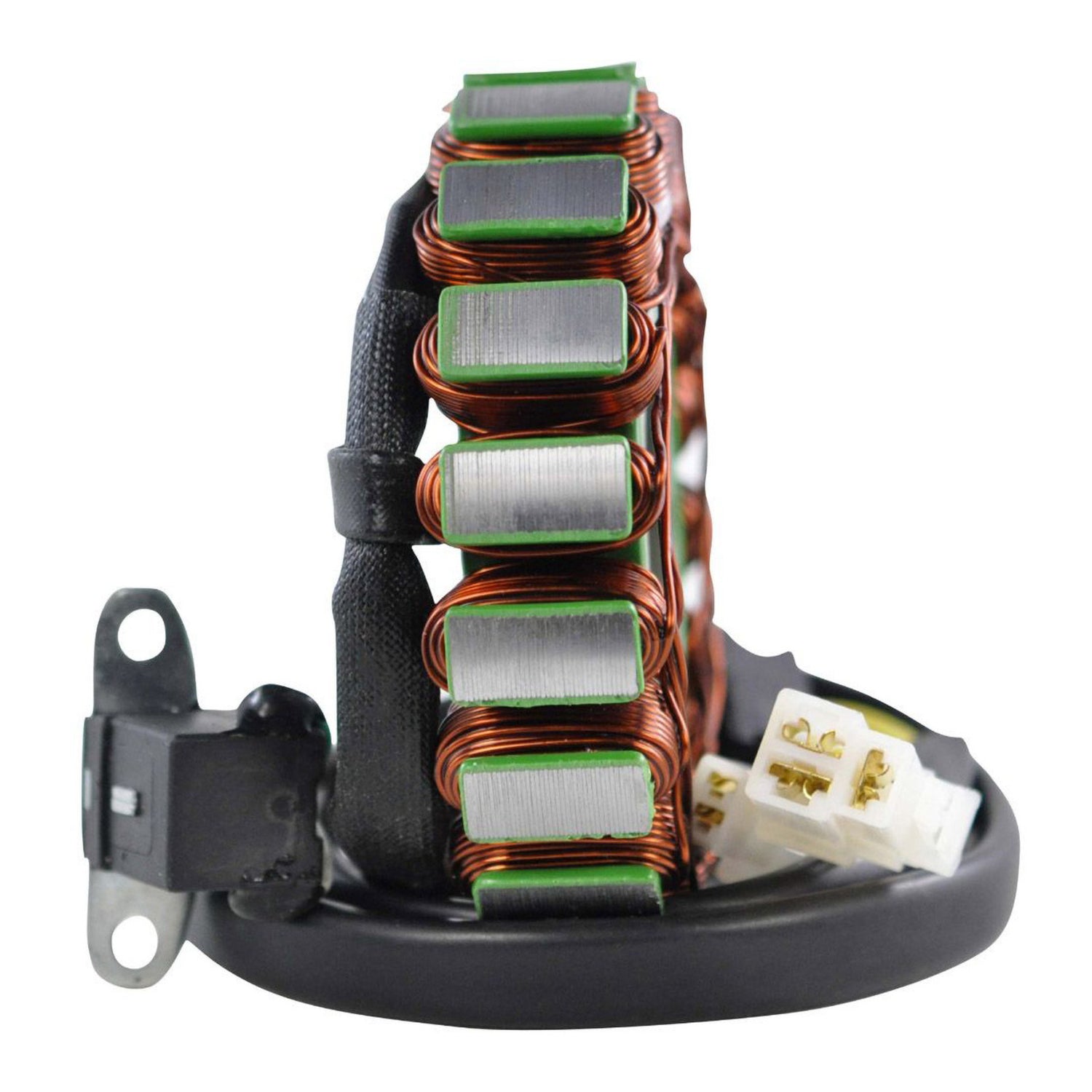

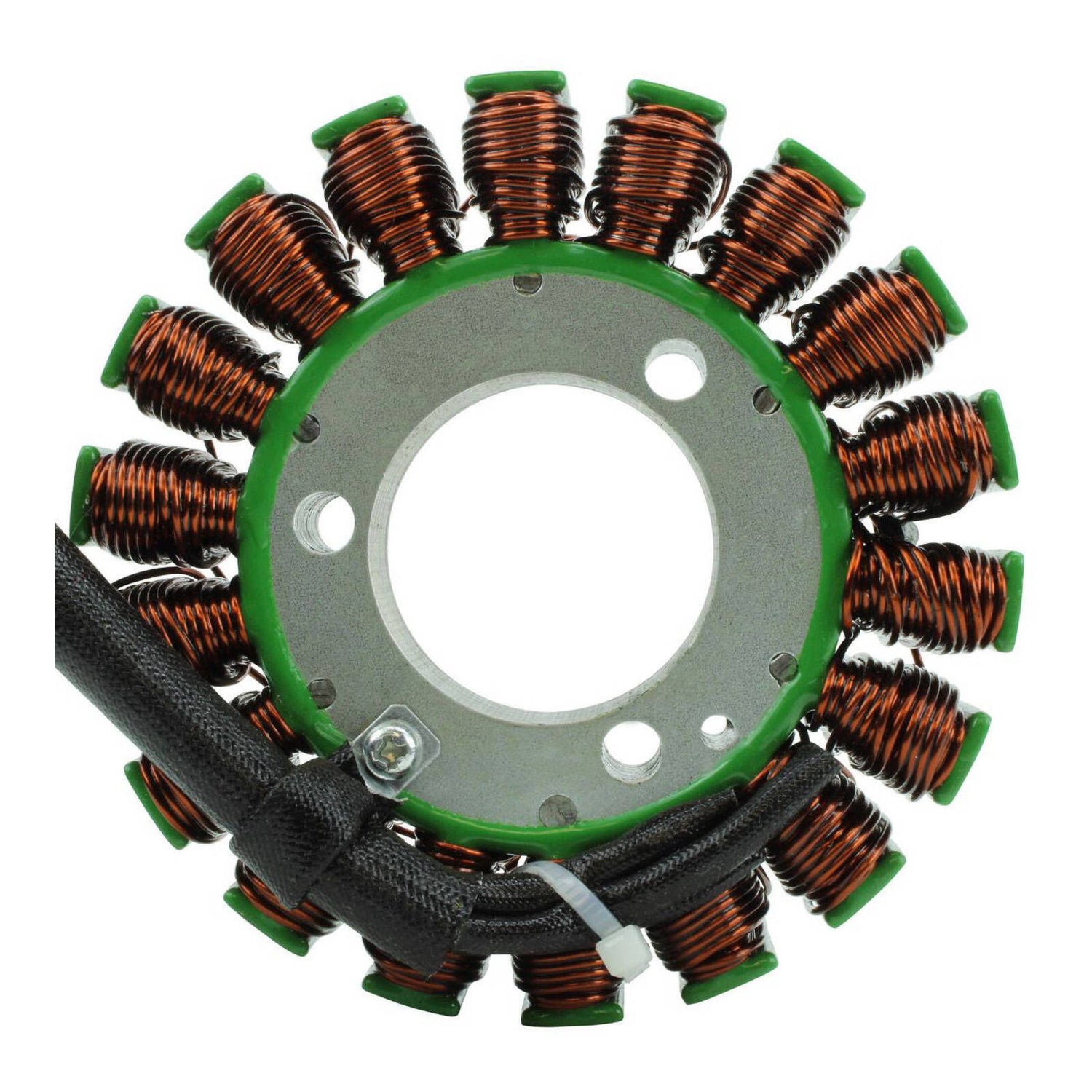

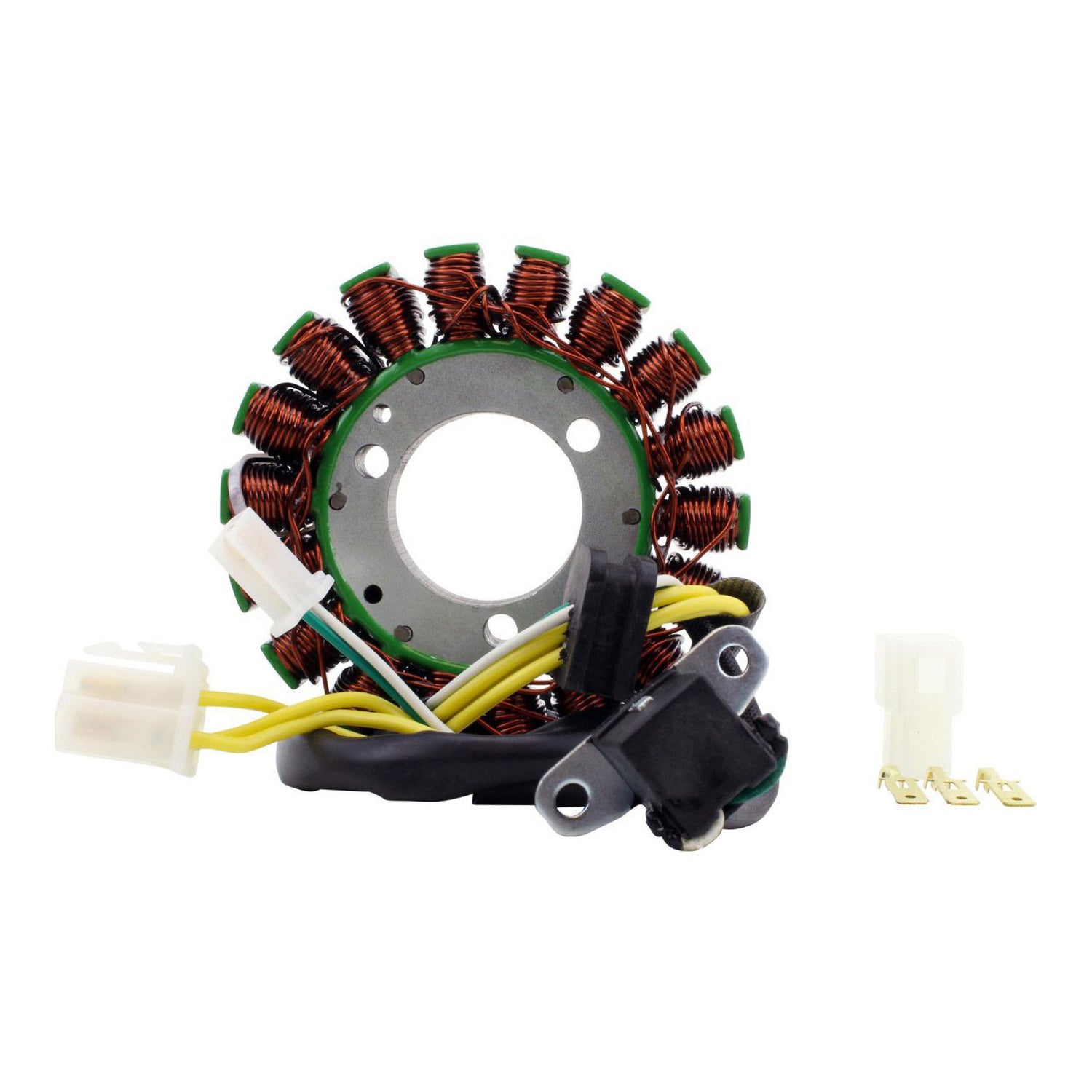

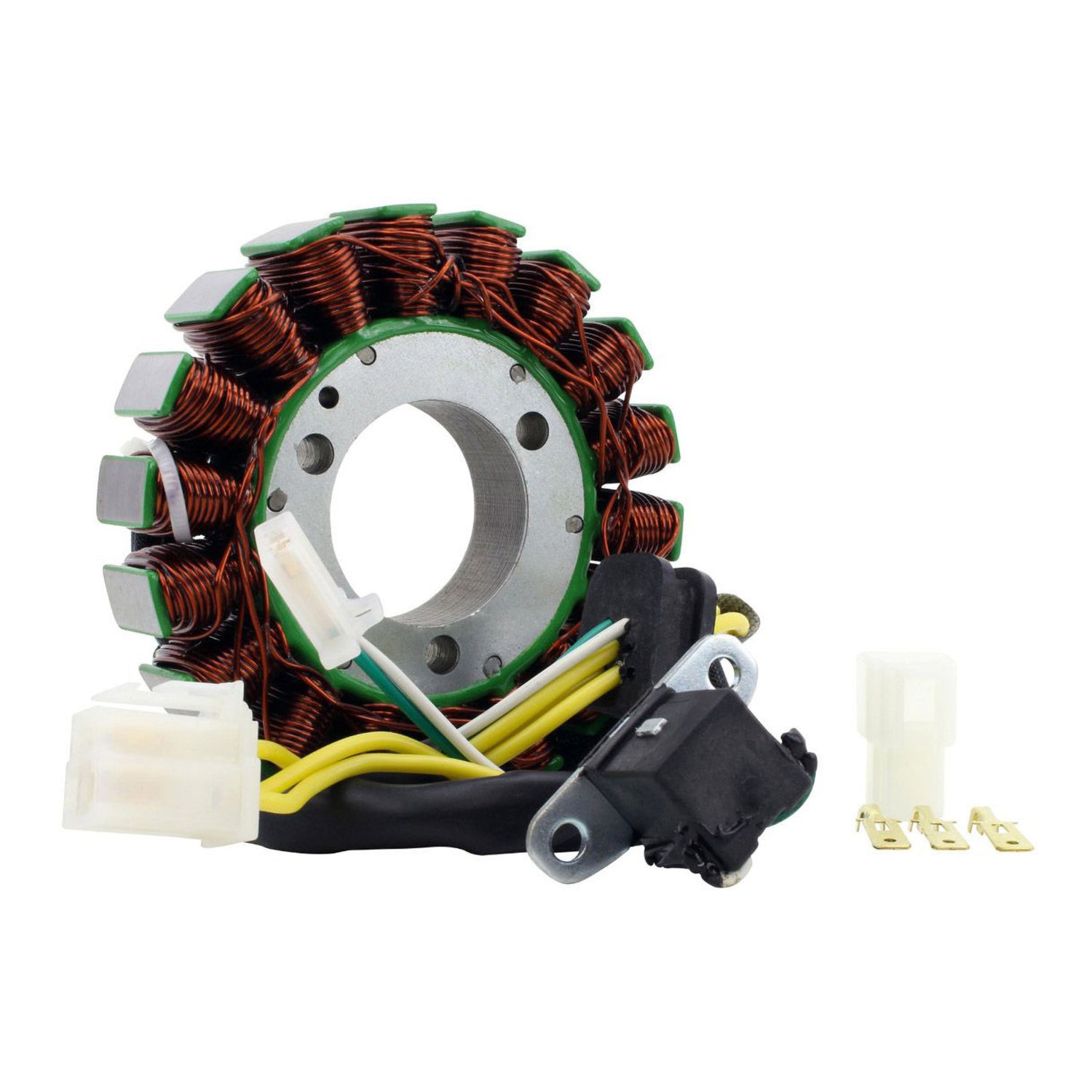

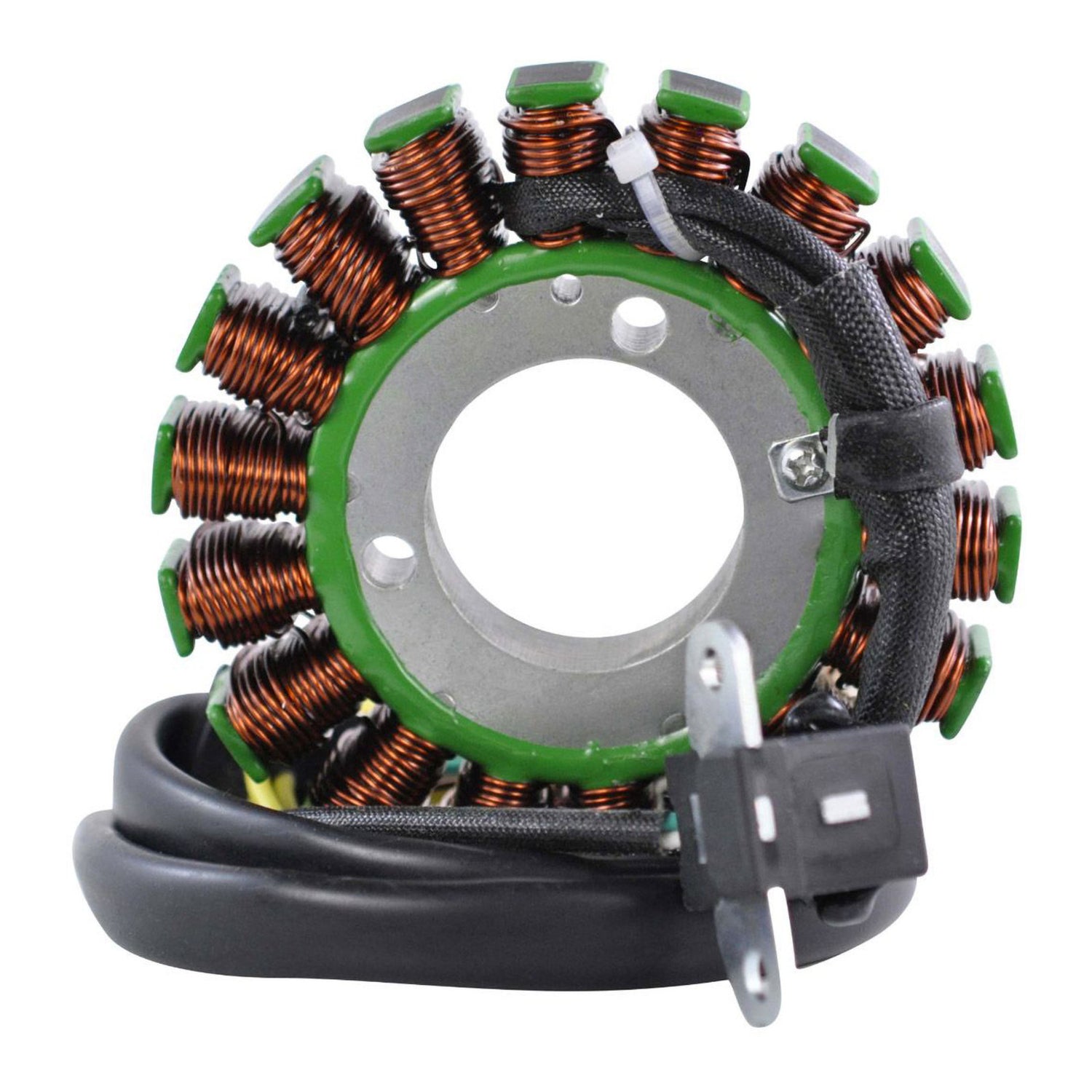

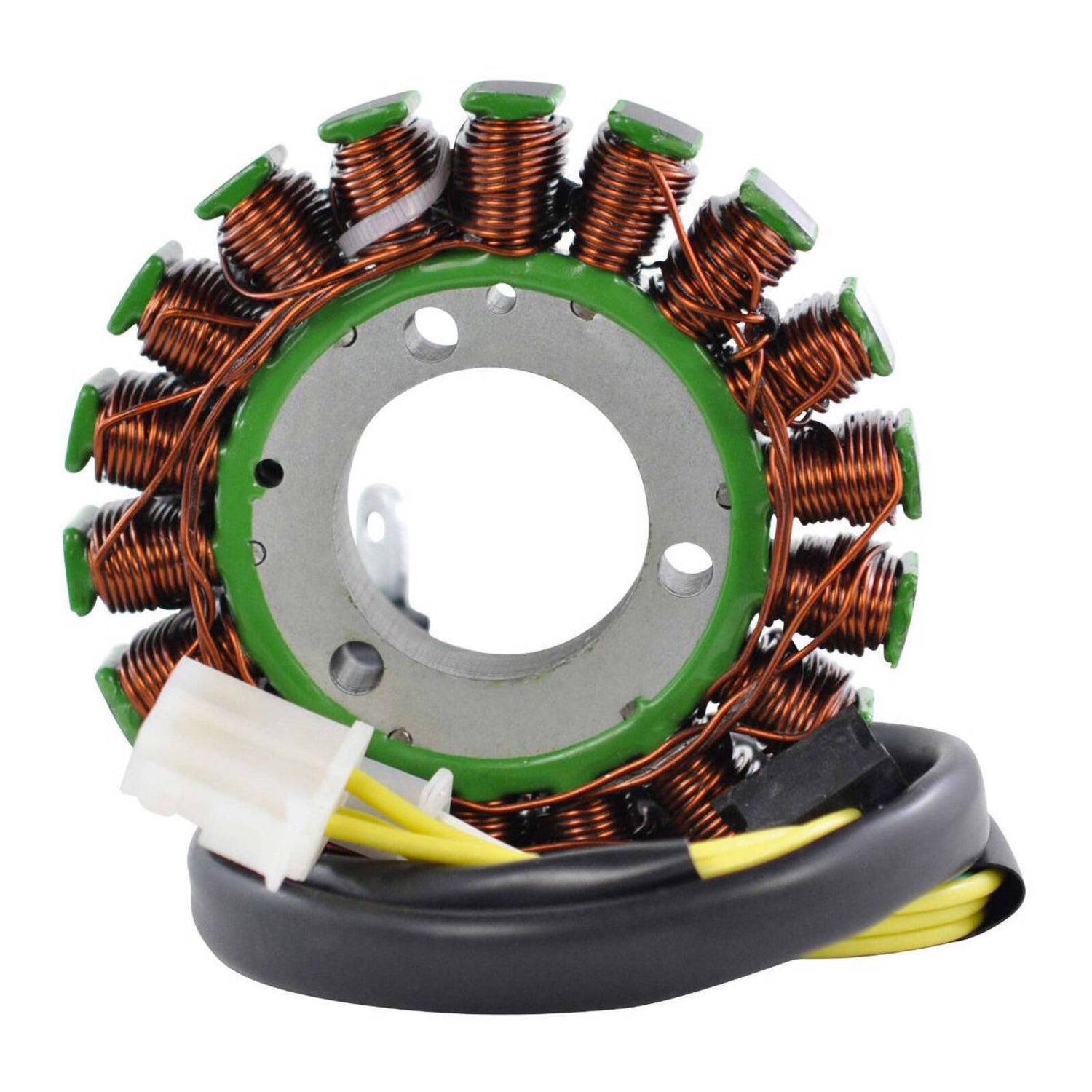

Generator Stator - Suzuki SV650 '99-'02 (RM01569)
Regular price
$25200
Unit price
Tax included
Shipping calculated at checkout.
Generator Stator - Suzuki SV650 '99-'02 (RM01569) is backordered and will ship as soon as it is back in stock.
Generator Stator - Suzuki SV650 '99-'02 (RM01569) is backordered and will ship as soon as it is back in stock.
Navigation Redefined
The ultimate navigation device for off-road riders.
Description
Description

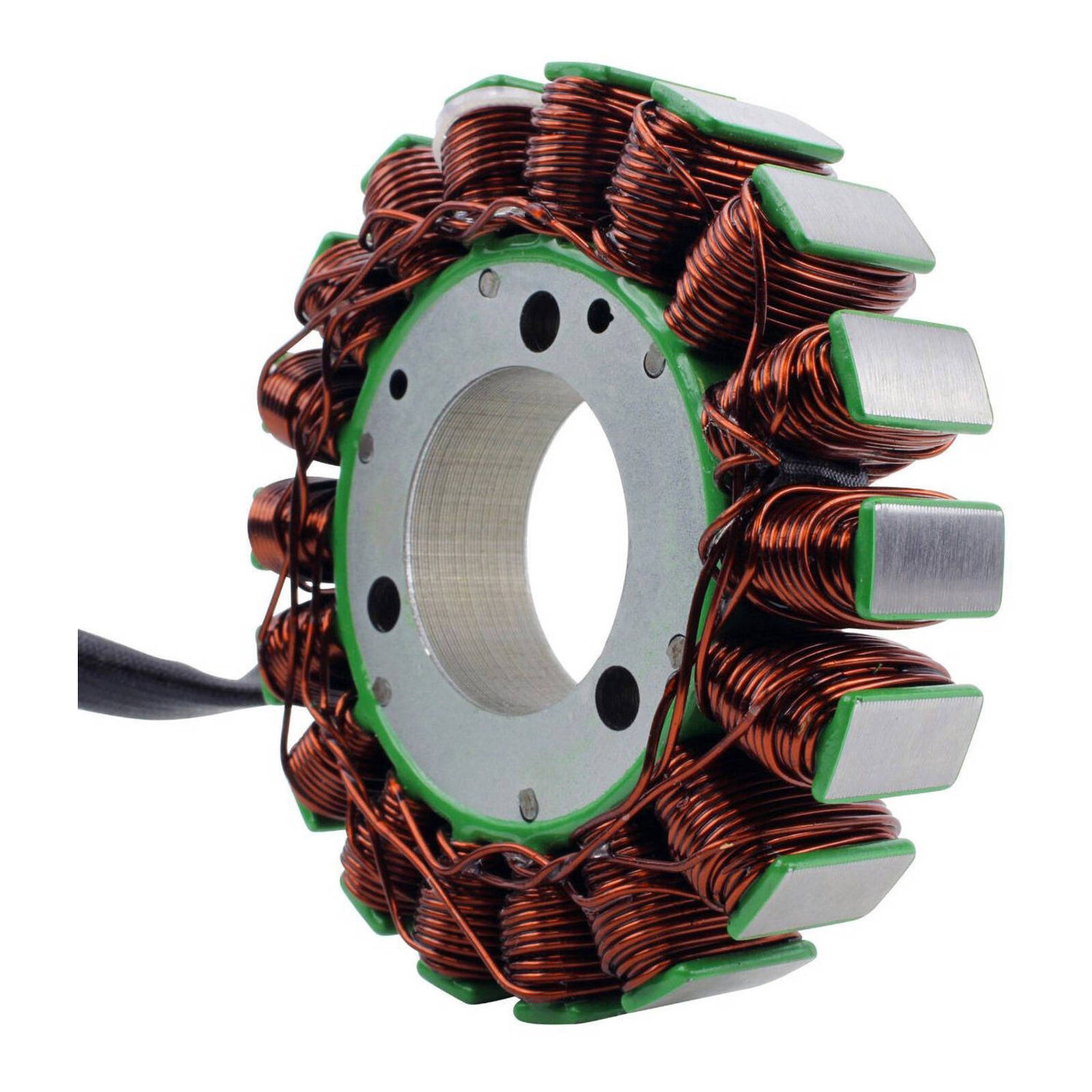

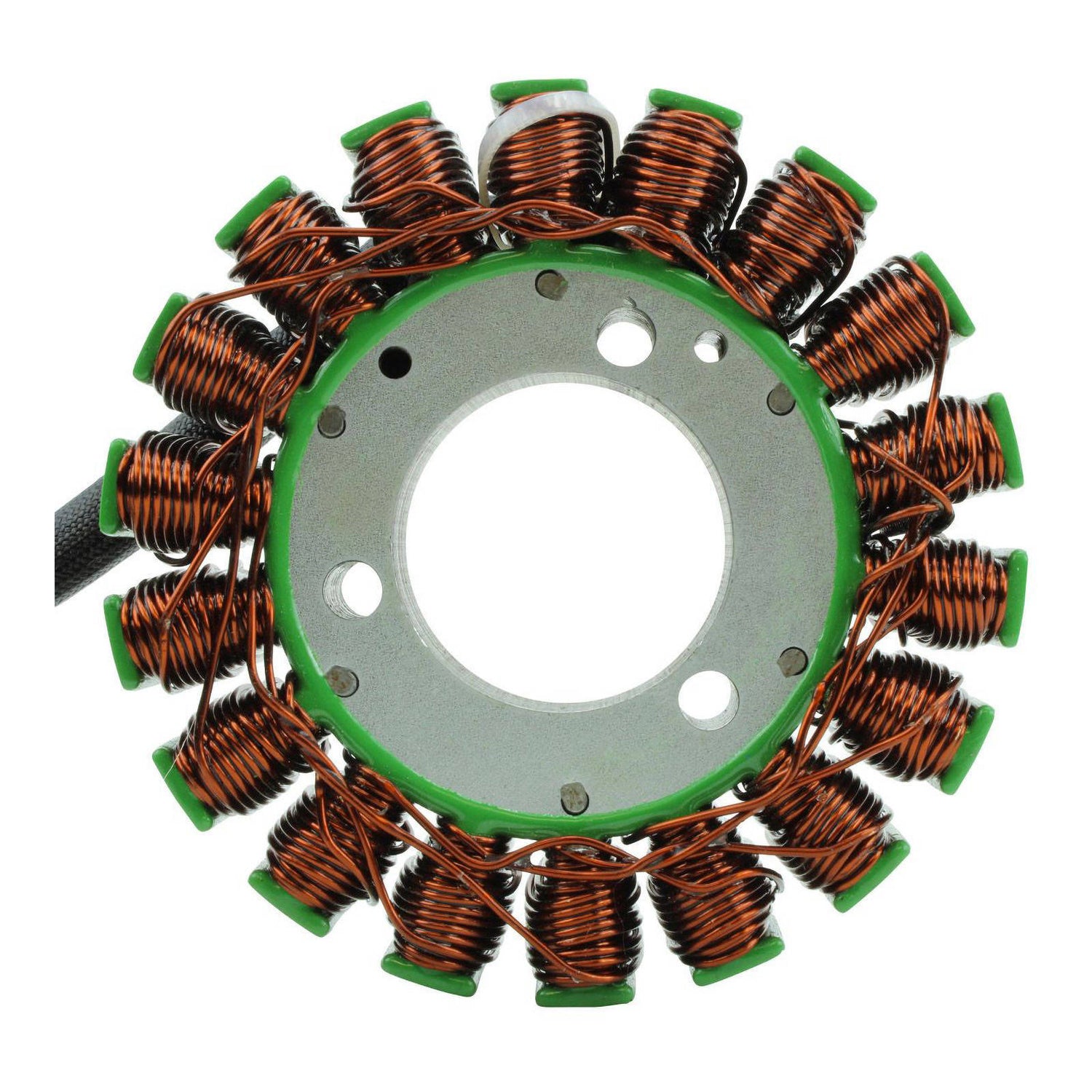

Plug-and-play replacement generator stator from RM Stator. See fitment guide for model details.
Features:
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding, resistant to 200 degrees Celsius.

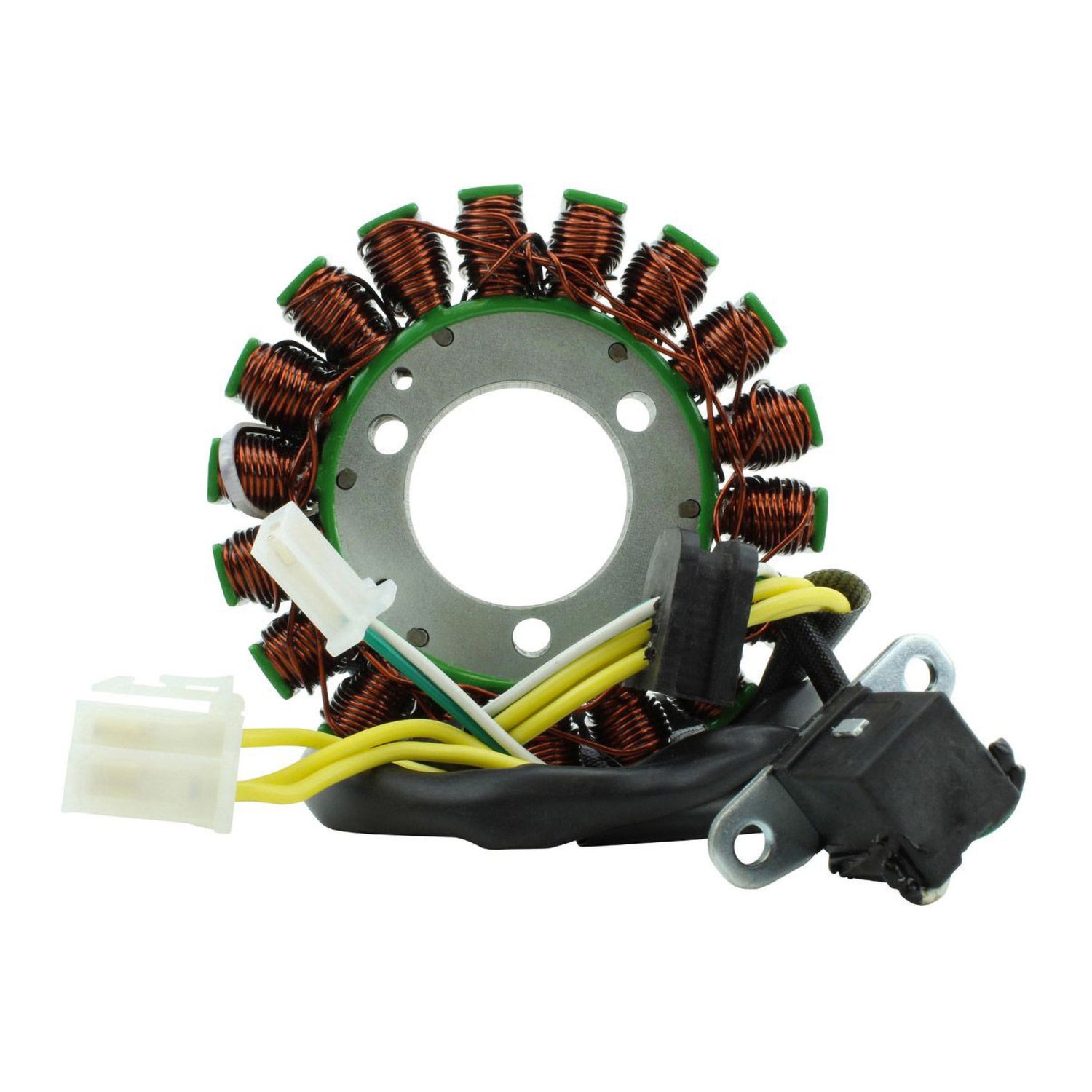

- Pick up pulsar coil included.

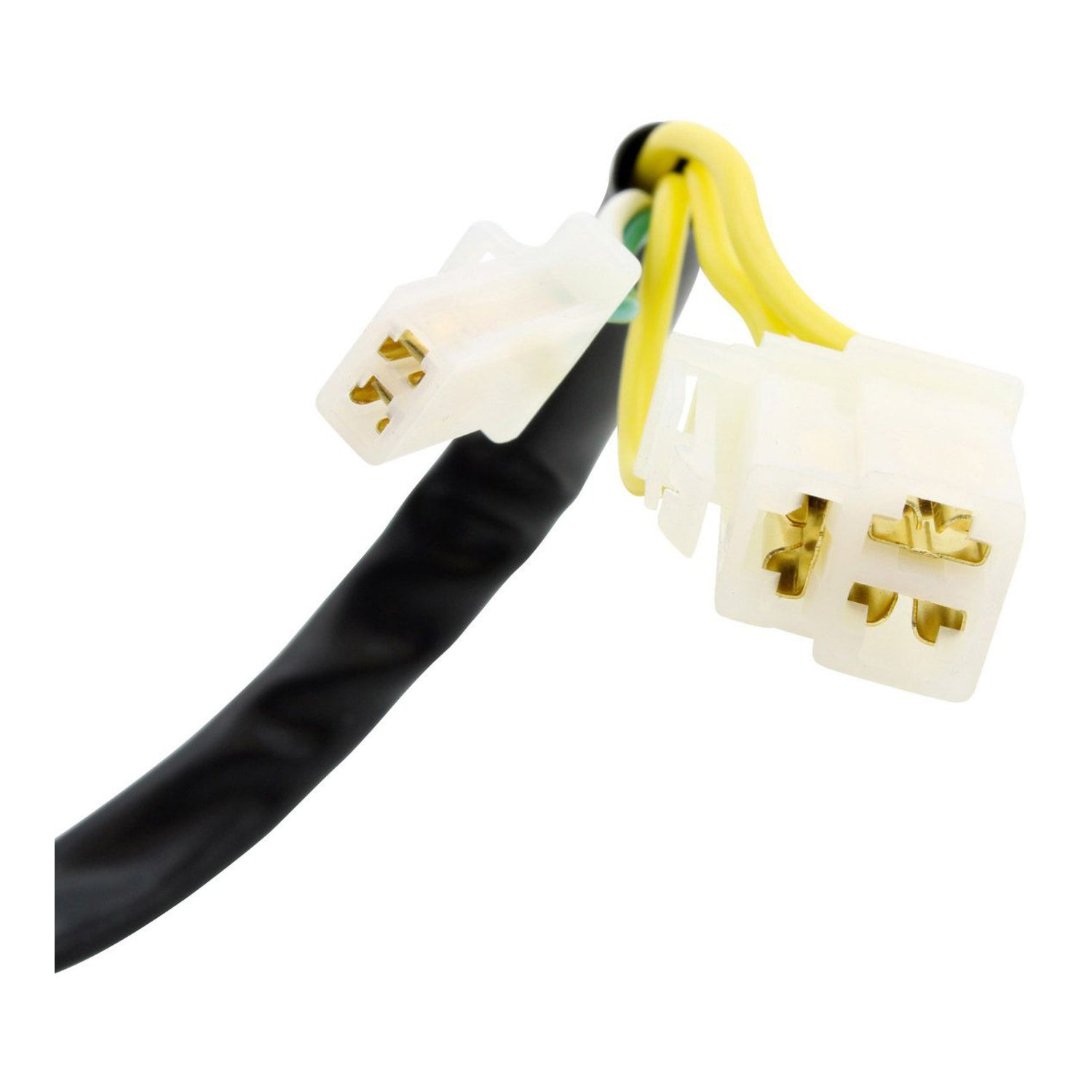

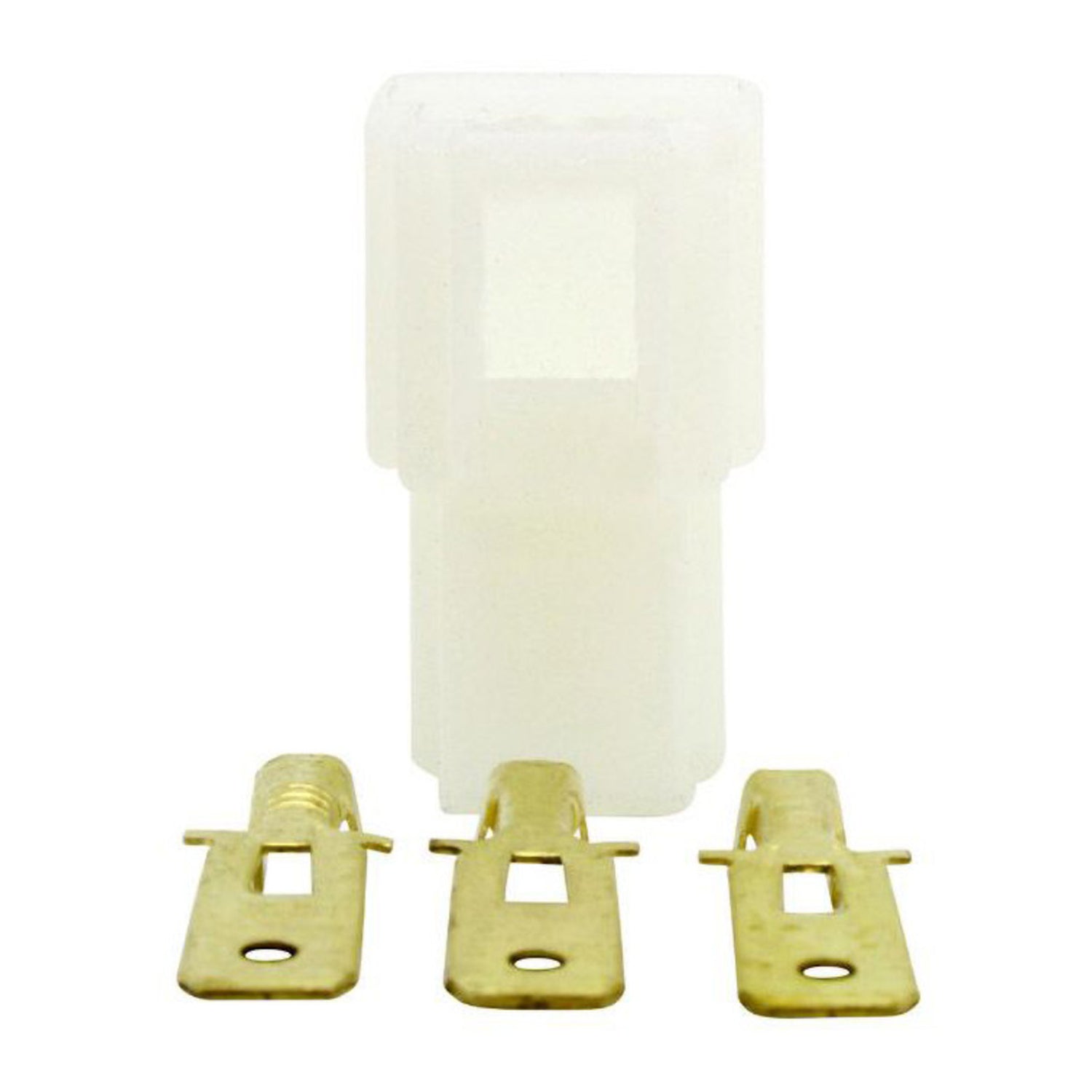

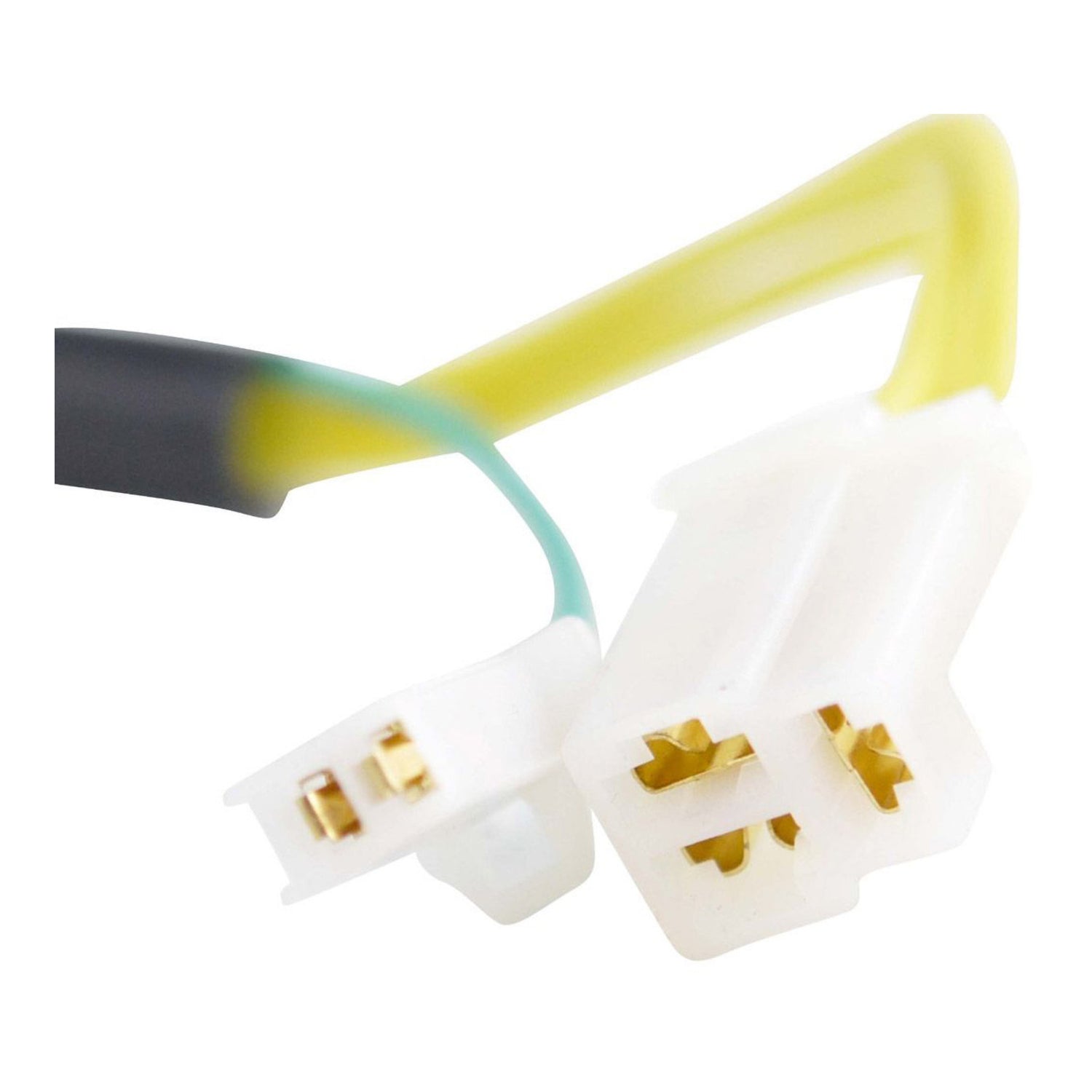

- Connector included.
- Rubber grommet included.
- All products shipped are tested.
Dimensions:
- Interior diameter: 38mm
- Exterior diameter: 105mm
- Thickness: 19mm
- Length of wires stator to grommet: 120mm
- Length of wires grommet to plug: 650mm
- Length of pickup coil's wire to grommet: 60mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Wire to wire resistance:
- Alternator: Yellow to Yellow = 0.7 ohms +-20%
- Pickup: Green to White = 195 ohms +/- 20%
