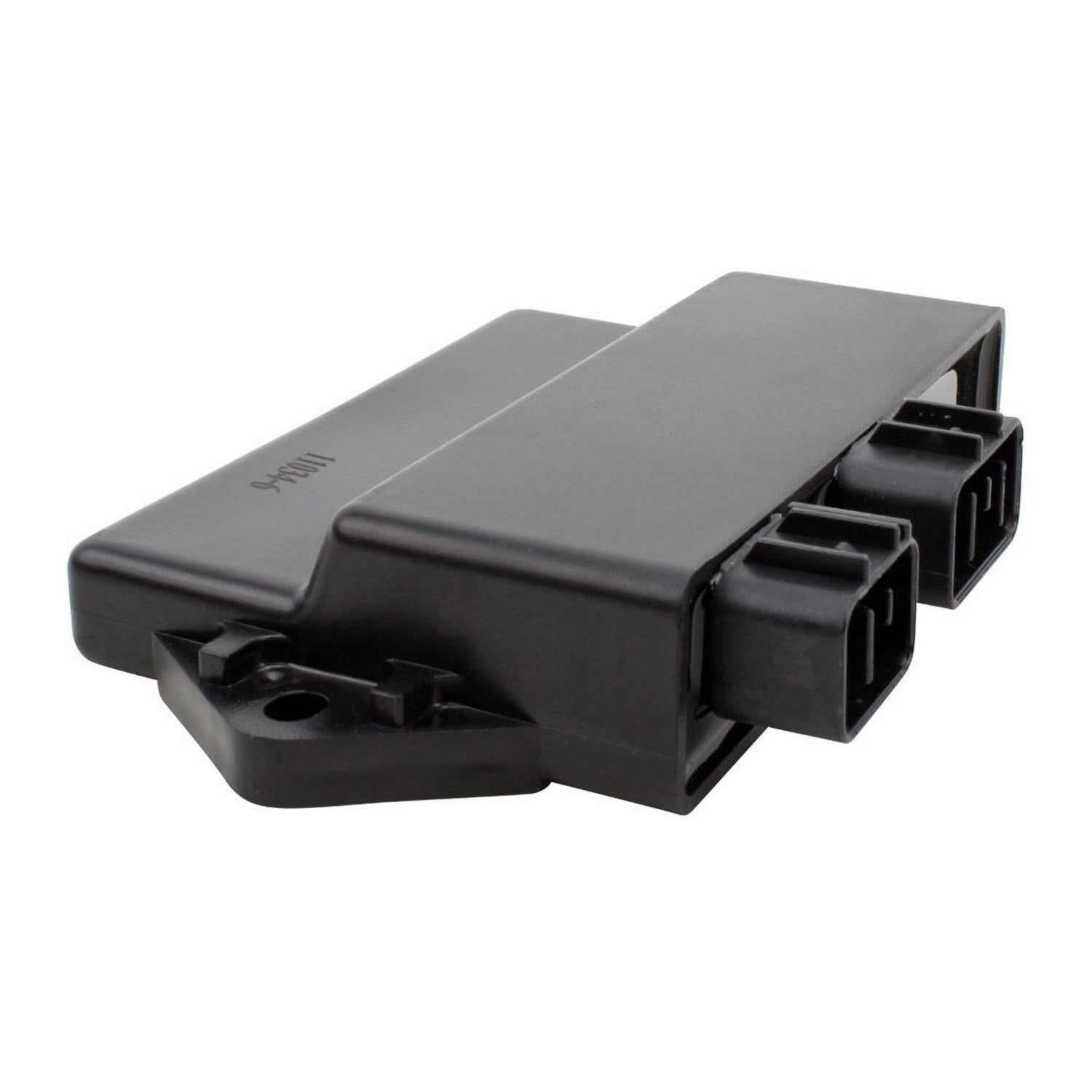

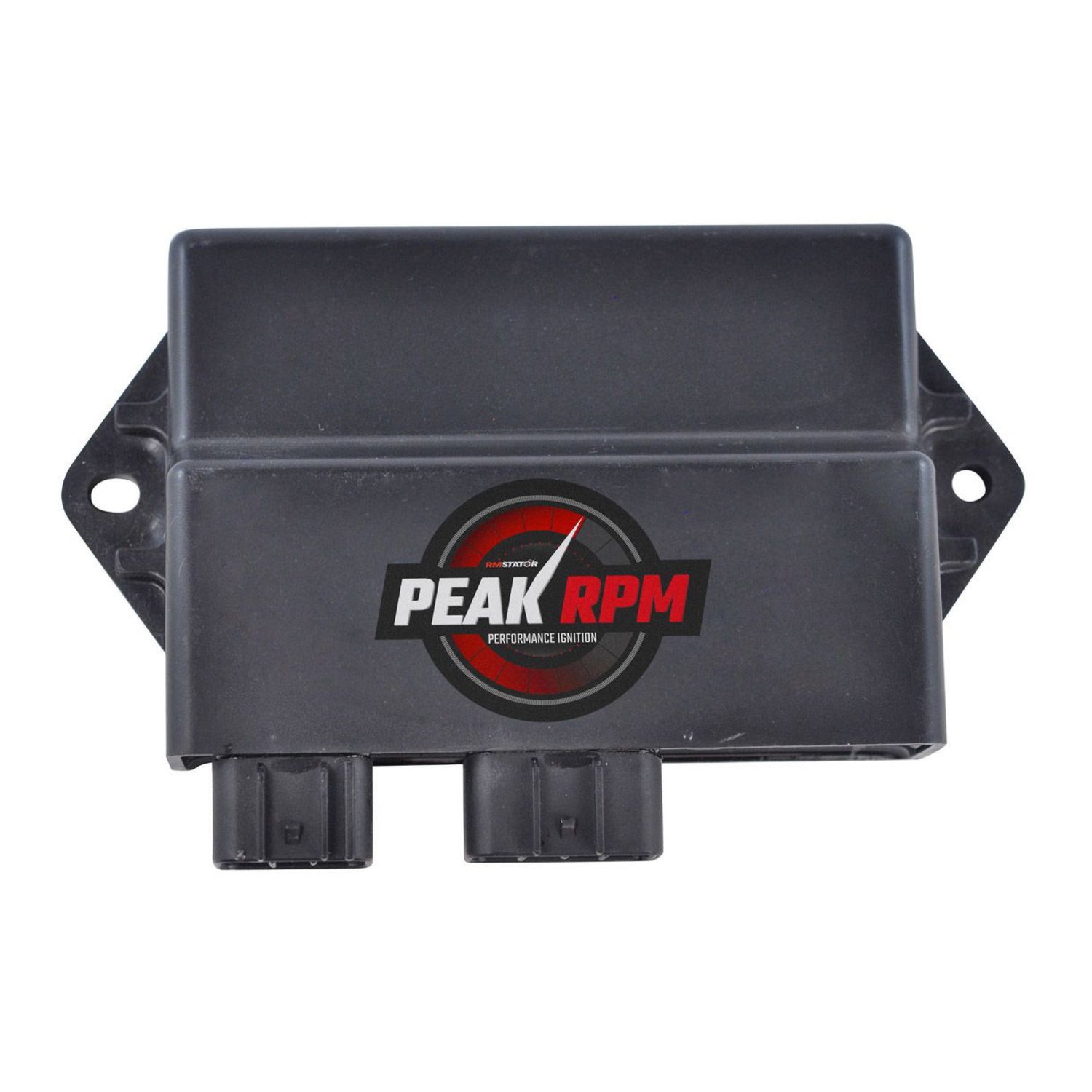

Brand new High-Performance aftermarket CDI box.
Features:
- PeakRPM technology provides a more aggressive timing curve for increased throttle response.
- Ride at full throttle with our application-specific CDI box that raises the rev limiter by 1000 RPM.
- Enjoy fast and easy installation with our plug and play desig and included dielectric connector grease.
- OEM-grade electronic components and printed circuit boards for long-term reliability and performance.
- 90% of ignition issues are caused by a faulty stator. Full test ignition components before buying.
Dimensions:
- Height: 27mm
- Length: 110mm
- Width: 78mm
- Distance between fixations holes: 126mm
Other Specifications:
- Number of plugs: 2
- Number of pins: 14
Note:
- only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.
- All electrical components must be fitted by a qualified technician.
- Before fitting electrical components ensure the root cause of the original failure has been addressed.
- The absence of either of points 1 or 2 above, will void any warranty.
