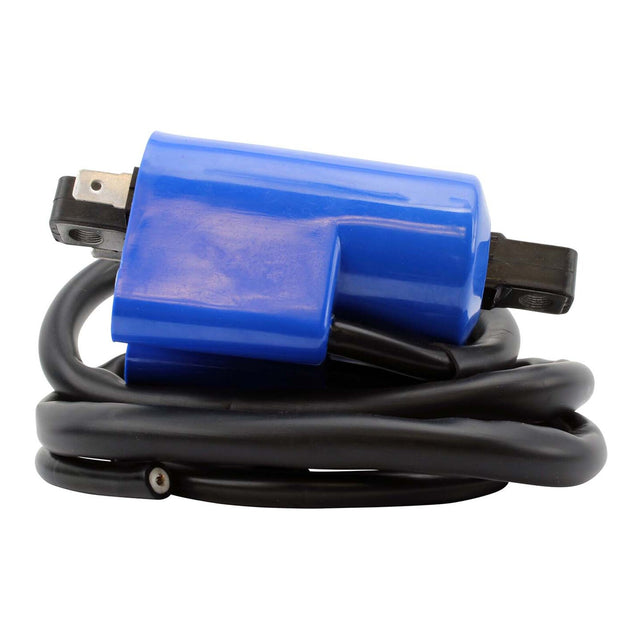

Ignition Coil - Suzuki GS '81-'99 / Yamaha FJ, R/Star '84-'14

Brand new aftermarket External Ignition Coil.

• Direct replacement for the original unit.
• Plug-and-play, direct fit, easy installation.
• All products shipped are tested.

All item pictures are accurate; if in doubt, do not hesitate to compare the item to the original part.

Remove spark plug cap(s) from the OEM external ignition coil.
Screw cap(s) onto the new external ignition coil.

Direct replacement for the original unit.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Width: 95 mm.
• Length: 150 mm.
• Height: 50 mm.
• Wires length: 590 mm.
• Fixation holes centre to centre: 90 mm.
• Primary resistance: 4.3 ohms.
• Secondary resistance: 15k ohms.
